Product Description

CASA ASIA DC-327 is an auto gate system that is best suited for sliding auto gates with

maximum support of the auto gate weighed up to 800 kg and 10 m in auto gate length. Choose CASA.

ASIA DC-327 for a sleek and elegant-looking auto gate system with a sturdy and compact

structure of an auto gate motor. DC-327 is made from top-quality electronic and mechanical

components, therefore, auto-gate users can expect a highly functional and safe auto-gate

operation. Other than that, DC-327 is equipped with a backup battery, providing an adequate

amount of power supply to keep the auto gate running optimally.

Product Highlights

• Support Backup Battery
• Support Maximum Gate Weight up to 800KG
• Maximum Gate Length 10m
• Simple, elegant design
• Pedestrian limit opening
• Sturdy, compact structure
• Multi-function indoor LED indicator/buzzer
• High-quality electronic and mechanical components

SLIDING GATE OPERATOR

Special Feature:

✓ Backup battery

✓For gates up to 800kg

✓Simple, elegant design

✓Pedestrian limit opening

✓Sturdy, compact structure

✓Multifunction indoor LED indicator/ buzzer

✓High quality electronic and mechanical components

LEGEND

1. Electronic Control Panel
2. Casa Motor
3. Backup Battery-
4. Power Transformer
5. Oil Bath Gear Box
6. Pinion Gear

Specifications Chart

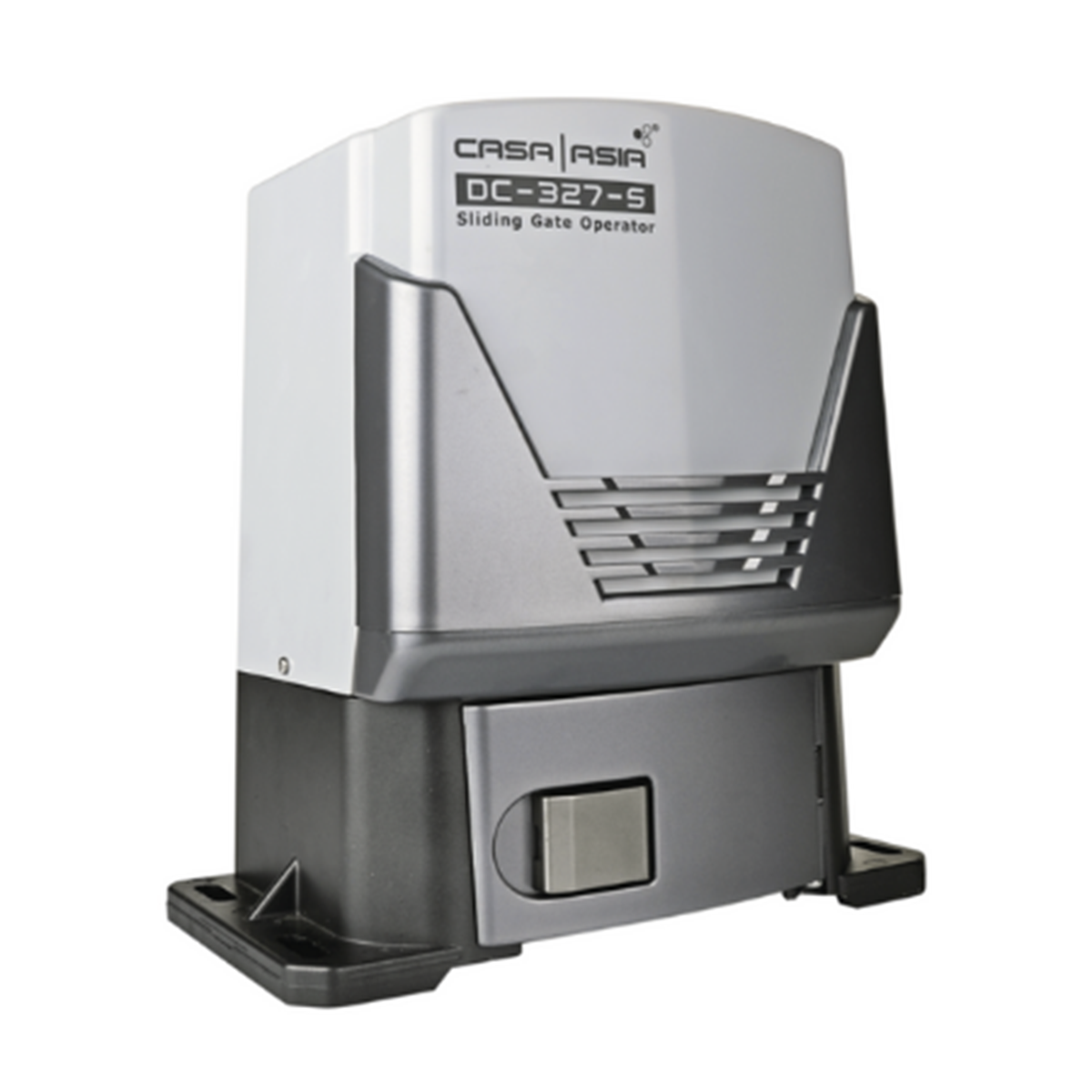

SLIDING GATE OPERATOR DC-327-S

Driving Method: Rack and pinion of module 4

Operating Voltage: DC24V for normal speed DC12V for cushioning speed

Max. Output Power: 150W

Max. Weight Of Gate: 800KG

Max. Length Of Gate: 10-meter

DSPS Device: Rotary magnetic sensor

Gearbox: Oil bath worm type reducer

Safety Clutch: Electronic current sensing

Backup Battery: 12V 7AH

Safety Barrier: Infrared beam sensor (Optional)

Main Supply: AC110V/220V, 60Hz/50Hz

Electronic Controller: Microcomputer based

Remote Controller: UHF Digital PWM type

Temperature: 0 to +80c
