LONG LIFE: Guaranteed in time for use of valuable and tested materials

PRECISE: DANO is equipped with a system of magnetic limit switches, which remain precise for many years of use.

QUIET: DANO is a reduction gear motor that uses metal gears worked with extreme precision for maximum silence.

SAFE: DANO utilises a clutch in an oil bath for anti-crush safety.

TECHNICAL SPECIFICATION: DANO 18

Power Supply: AC 230/120 V

Motor Speed: 1400 RPM

Output Torque: 22Nm

Gate Speed: 12M / Min

Max Gate Weight: 1000 KG

Working Temperature: - 45°C to 65°C

Power Supply for Accessories: AC 230 V

Absorb Power: 500 Walts

Pinion Gear: Z 19

Safety Clutch: Electronic Hi-Amp Auto Reserve

Noise: ≤ 56 dB

Protection Class: IP 44

Manual Optional: Release Key for Power Failure

TECHNICAL SPECIFICATION: DANO 22

Power Supply: AC 230/120 V

Motor Speed:1400 RPM

Output Torque: 27Nm

Gate Speed: 12M / Min

Max Gate Weight: 1800 KG

Working Temperature: - 45°C to 65°C

Power Supply for Accessories: AC 230 V

Absorb Power: 650 Walts

Pinion Gear: Z 19

Safety Clutch: Electronic Hi-Amp Auto Reserve

Noise: ≤ 56 dB

Protection Class: IP 44

Manual Optional: Release Key for Power Failure

TECHNICAL SPECIFICATION: DANO 24

Power Supply: DC 24 V

Motor Speed: 2200 RPM

Output Torque: 20Nm

Gate Speed: 16M / Min

Max Gate Weight: 1000 KG

Working Temperature: - 45°C to 65°C

Power Supply for Accessories: 24V DC

Absorb Power: 100 Walts

Pinion Gear: Z 19

Safety Clutch: Electronic Hi-Amp Auto Reserve

Noise: ≤ 56 dB

Protection Class: IP 44

Manual Optional: Release Key for Power Failure

TECHNICAL SPECIFICATION: DANO 45

Power Supply: AC 230/120 V

Motor Speed: 1400 RPM

Output Torque: 45Nm

Gate Speed: 12M / Min

Max Gate Weight: 2500 KG

Working Temperature: - 45°C to 65°C

Power Supply for Accessories: AC 230 V

Absorb Power: 650 Walts

Pinion Gear: Z 19

Safety Clutch: Electronic Hi-Amp Auto Reserve

Noise: ≤ 56 dB

Protection Class: IP 44

Manual Optional: Release Key for Power Failure

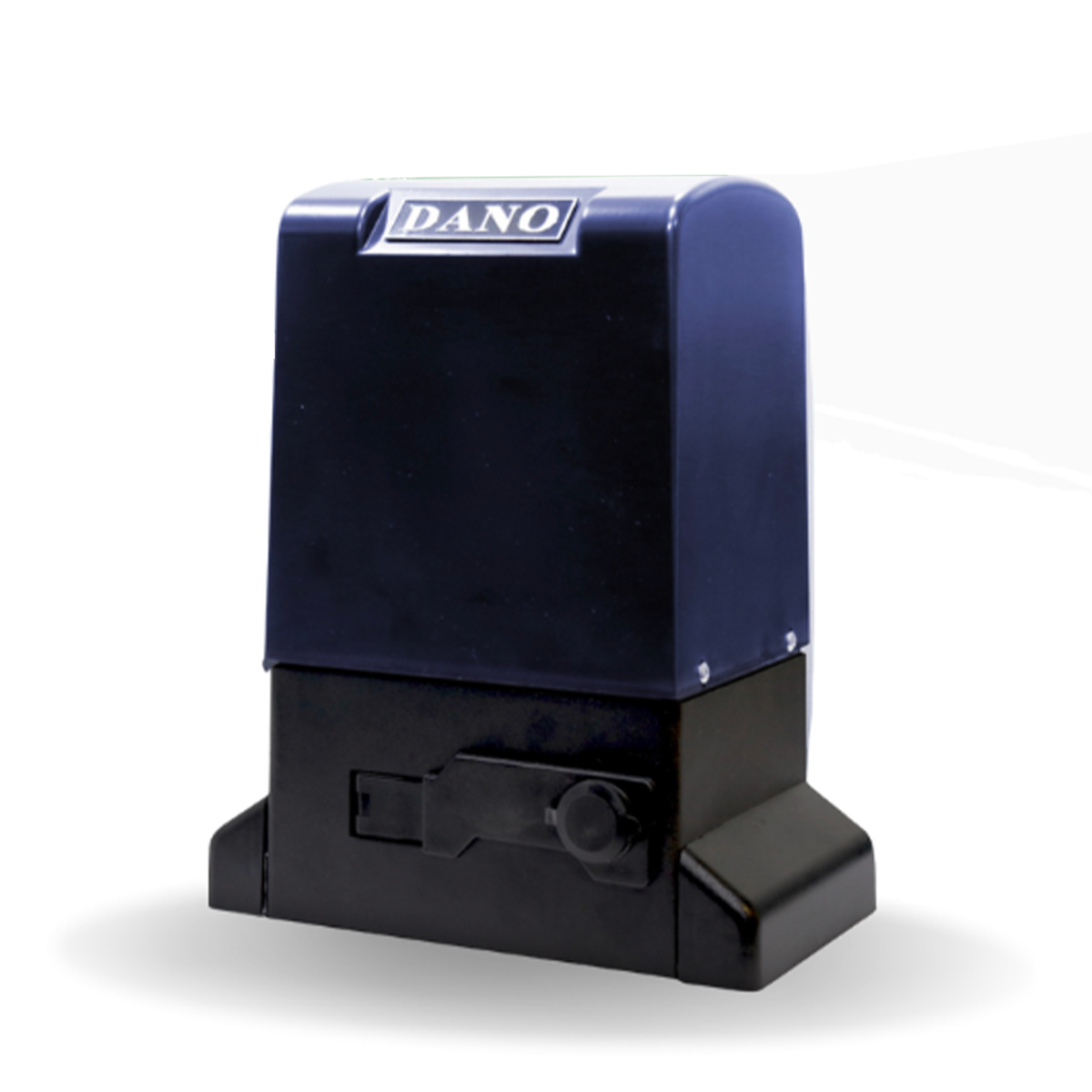

DANO 18

DANO 18 Sliding gate with ITALY Technology

— 1 YEAR WARRANTY —

Technical Specification:

POWER SUPPLY: AC 230V/120V

MOTOR SPEED: 1400 RPM

OUTPUT TORQUE: 22Nm

GATE SPEED: 12M/Min

MAX. GATE WEIGHT: 1000KG

WORKING TEMPERATURE: -45°C to 65°C

POWER SUPPLY FOR ACCESSORIES: AC 230V

ABSORB POWER: 500 Walts

PINION GEAR: Z 19

SAFETY CLUTCH: Electronic Hi-Amp Auto Reserve

NOISE:

PROTECTION CLASS: IP 44

MANUAL OPERATION: Release key for power failure

DANO 22

DANO 22 Sliding gate with ITALY Technology (Industrial)

— 1 YEAR WARRANTY —

Technical Specifications:

POWER SUPPLY: AC 230V/120V

MOTOR SPEED: 1400 ROM

OUTPUT TORQUE: 27 NM

GATE SPEED: 12M / Min

MAX. GATE WEIGHT: 1800 KG

WORKING TEMPERATURE: -45°C to 65°C

POWER SUPPLY FOR ACCESSORIES: AC 230V

ABSORB POWER: 650 Walts

PINION GEAR: Z 19

SAFETY CLUTCH: Electronic Hi-Amp Auto Reserve

NOISE: ≤ 56 dB

PROTECTION CLASS: IP 44

MANUAL OPTIONAL: Release key for Power failure
